CSL Behring

Fiberglass Chemical & Process Tanks

CSL Behring
Broadmeadows, Victoria
Manufacture of pharmaceutical products

Scope of Works

Design, fabrication and delivery of FRP Chemical and Process Tanks

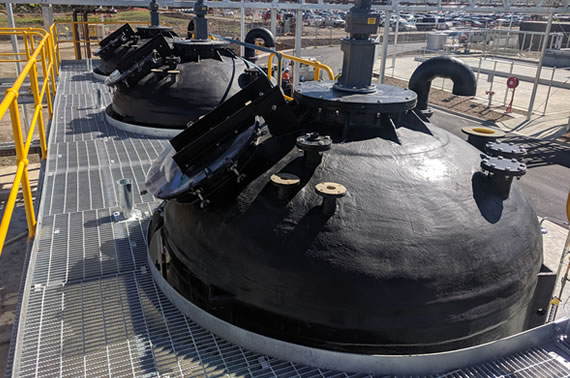

  • 3 off 16KL Effluent Treatment Tanks
    Designed and Fabricated to ASME RTP-1 2500mm Dia x 4030mm Overall Height Vinyl Ester Corrosion Barrier Isophthalic Structural layers Standard Vertical Tank Configuration AE3246/01 SAF 2205 Agitator
  • 1 off 29.5KL Hydrochloric Acid Storage Tank
    Designed and Fabricated to ASME RTP-1 3000mm Dia x 5900mm Overall Height Vinyl Ester Throughout Elevated Configuration
  • 2 off 16.97KL Effluent Collection Tanks
    Designed and Fabricated to ASME RTP-1 3000mm Dia x 3800mm Overall Height Vinyl Ester Corrosion Barrier Isophthalic Structural layers Elevated Configuration
